Loose thing inside my phone

[Dlonk]

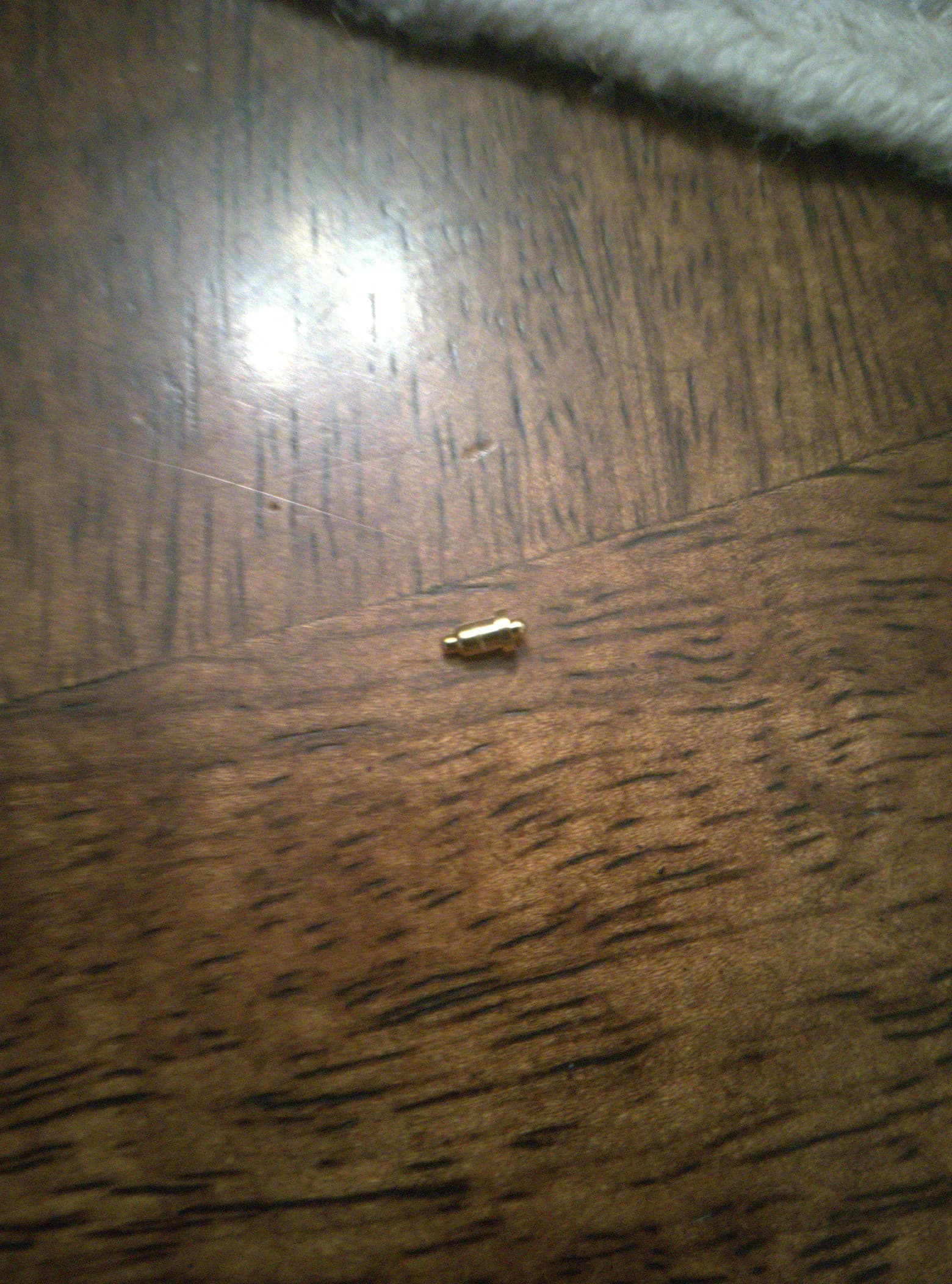

I took apart my Librem 5 and there was a loose thing rolling around inside.

What is this and where is its appropriate location?

[irvinewade]

Others have had the same problem. Seek and ye shall find.

Basically it comes loose as part of taking the Librem 5 apart and then typically the customer doesn’t know where it came from.

Edit: Adding e.g. Disassembled my Librem 5 and this fell out and another link from there.

[FranklyFlawless]

There are three golden pins. I suspect it is the one near the Wi-Fi/Bluetooth module:

Repairing a Librem 5 Modem

It is possible to remove the antenna connectors using just the fingernails, like I did when I replaced my Redpine module with the SparkLAN module, but it requires great finesse and patience. The antenna connectors themselves can also last past 10 removals, as I learned when disassembling the Librem 5 multiple times. I had more trouble keeping those three golden pins in place when putting everything back together.

[lwriemen]

The one near the wifi board is the only one I’ve had fall out when taking my phone apart. It is a little tricky to put back, but not too hard.

[tendays]

@Dlonk did you find where it goes?

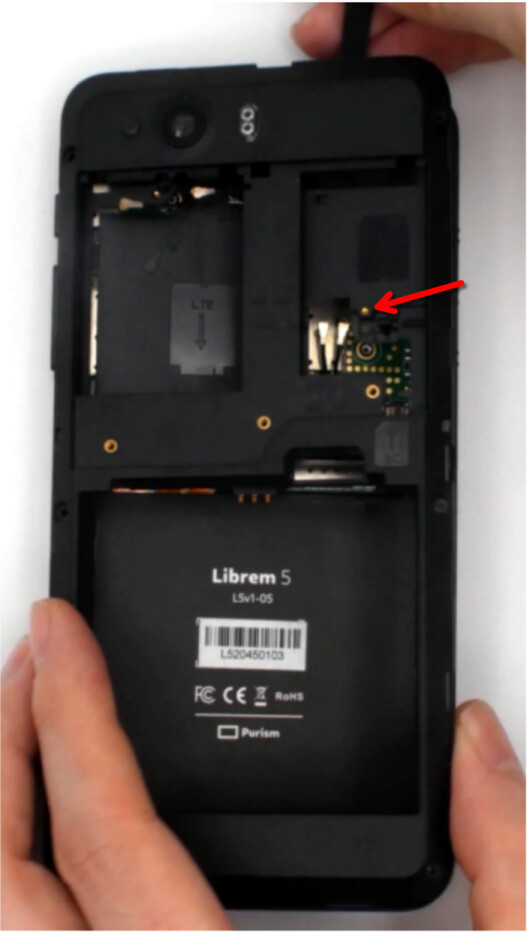

I saw those when taking my phone apart. Here is one of them (image taken from Chassis - Purism user documentation ) :

There was at least one more later on, but I can’t remember where, and I’m not going to take the phone apart just to see, sorry

[Dlonk]

Nah I put it in a ziploc bag and left it off to the side, and put the phone back together because I was busy. So I appreciate the image! I need to open it up and put that back in.

[irvinewade]

Other images are available in and from the topic that I linked above.

Probably it should be covered by the official Purism documentation as you are not the first and you won’t be the last. @JCS.

[JCS]

Thank you for the heads-up. I created this issue to track this documentation improvement.
